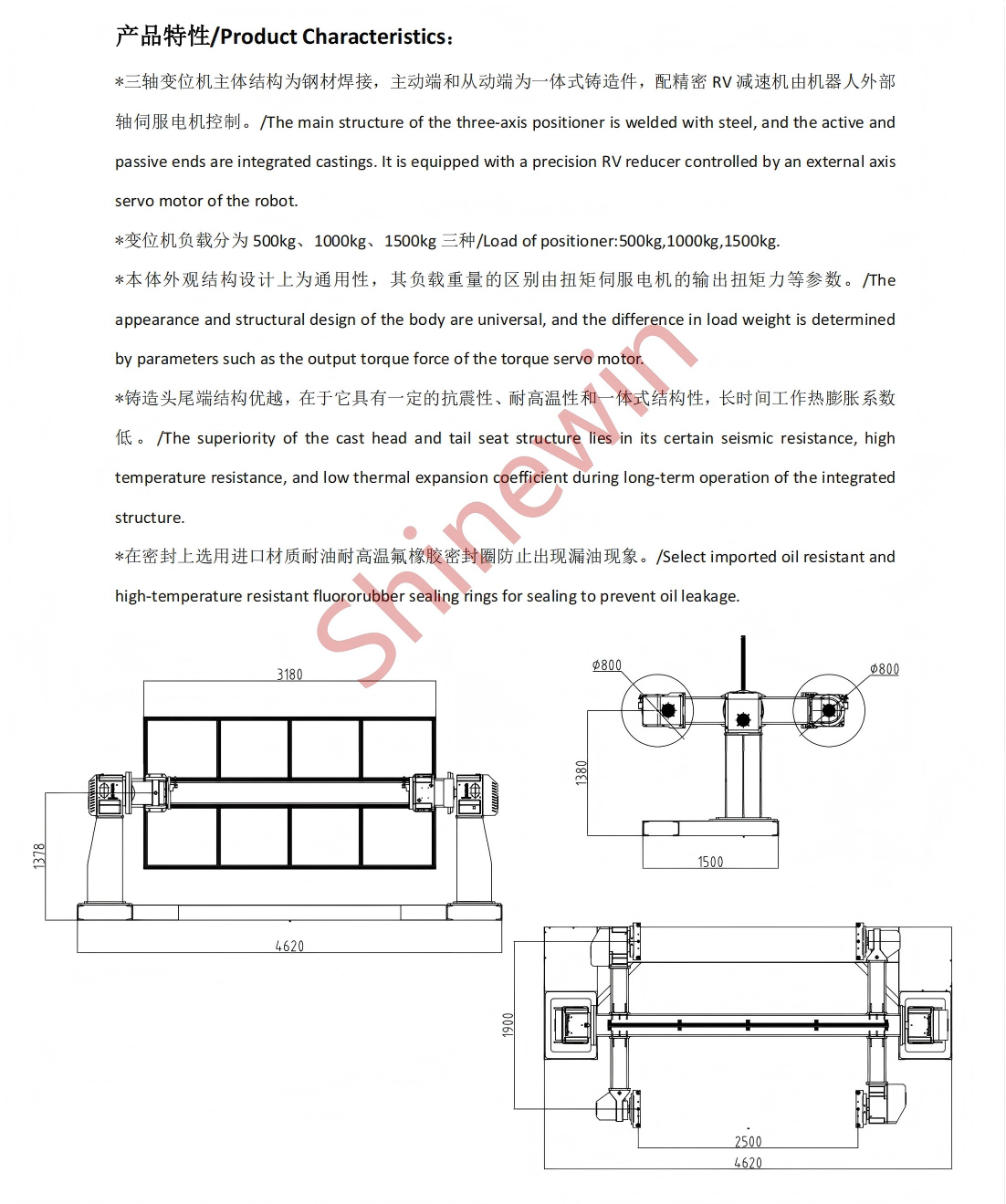

The frame structure of the three-axis positioner is made of welded steel, and the active and passive heads are cast parts, with precision RV reducers controlled by external axis servo motors of the robot;

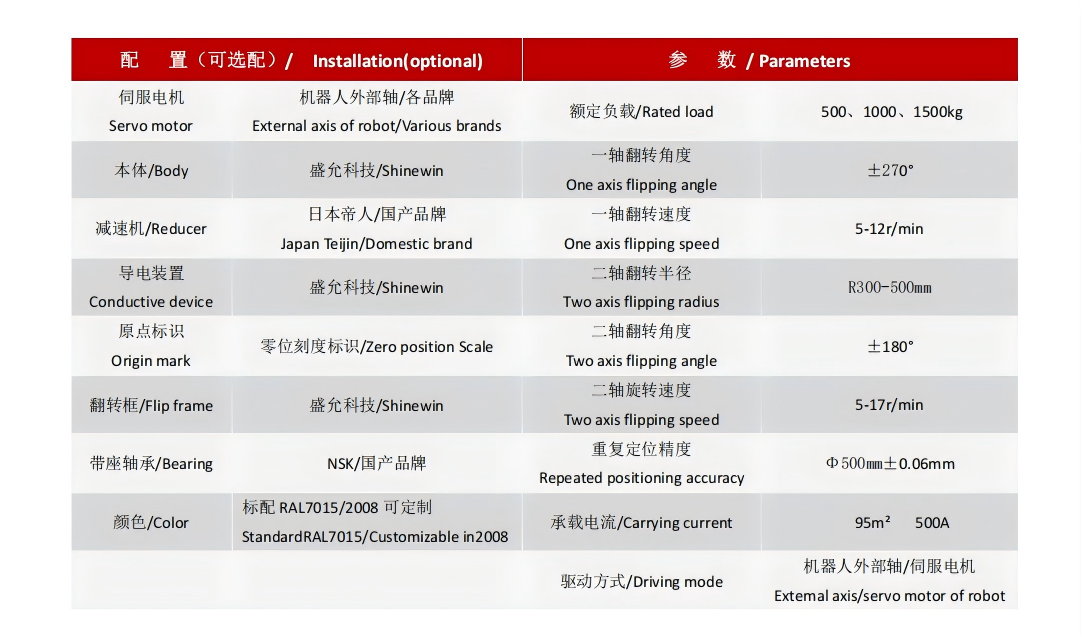

Load of positioner:500kg,1000kg,1500kg

The appearance and structural design of the body are universal, and the difference in load weight is determined by parameters such as the output torque force of the torque servo motor;

The superiority of the cast head and tail seat structure lies in its certain seismic resistance, high temperature resistance, and low thermal expansion coefficient during long-term operation of the integrated structure;

Select imported oil resistant and high-temperature resistant fluororubber sealing rings for sealing to prevent oil leakage；
